AIRTECH clean benches are economical, lightweight, and come in a variety of standard sizes. They are available in Table Top, Console, SS-MAC, and custom models. All models use either extruded anodized aluminium or cold rolled steel main body construction. Clean bench is the most effective method of ensuring a clean zone around a critical work or inspection process. The work area can be kept at class 100, 10, or 1 utilizing horizontal or vertical laminar air flow. Clean benches are perfect for a full range of manufacturing and inspection processes in the semiconductor, microelectronic, pharmaceutical, or biomedical industries. #SGVS-840K #SGVS-1300L
AIRTECH clean benches are economical, lightweight, and come in a variety of standard sizes. They are available in Table Top, Console, SS-MAC, and custom models. All models use either extruded anodized aluminium or cold rolled steel main body construction. Clean bench is the most effective method of ensuring a clean zone around a critical work or inspection process. The work area can be kept at class 100, 10, or 1 utilizing horizontal or vertical laminar air flow. Clean benches are perfect for a full range of manufacturing and inspection processes in the semiconductor, microelectronic, pharmaceutical, or biomedical industries. #SGVS-840K #SGVS-1300L
|
SGVS-840K |
SGVS-1300L |
Cleanliness |
ISO CLASS 5 |
ISO CLASS 5 |
Air Velocity |
≥0.3 m/s |
≥0.3 m/s |
Noise |
≤62 dBA |
≤62 dBA |
Illumination |
≥300 Lx |
≥300 Lx |
Power |
AC220V, 1φ, 50Hz |
AC220V, 1φ, 50Hz |
Materials |
Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory. |
Work Dimension (W1XD1XH1) |
680 x 650 x 570 mm |
1140 x 650 x 720 mm |
Overall Dimension (WXDXH) |
840 x 825 x 1625 mm |
1300 x 825 x 1775 mm |
Optional Accessories: UV Lamp
#SGVS-840K
#SGVS-1300L

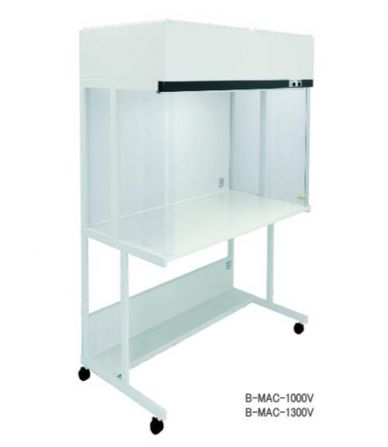

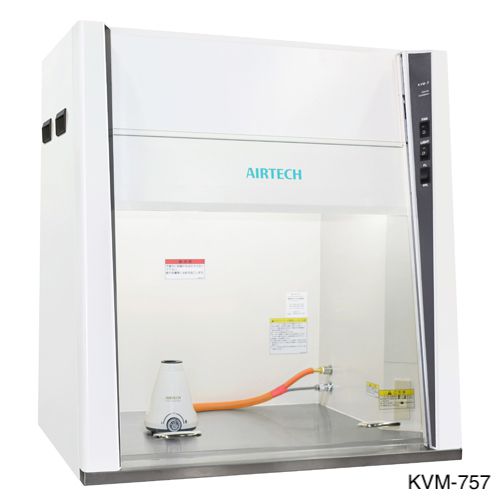

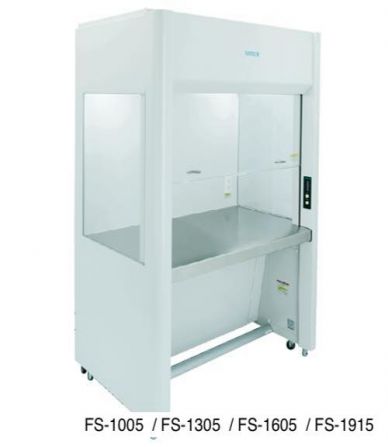

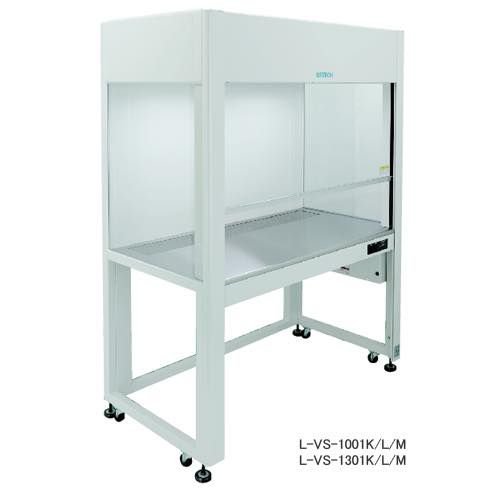

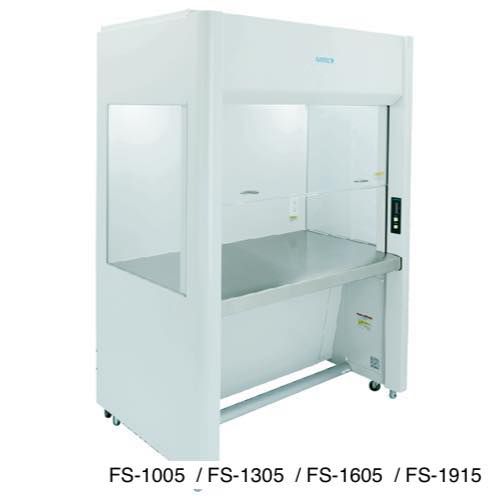

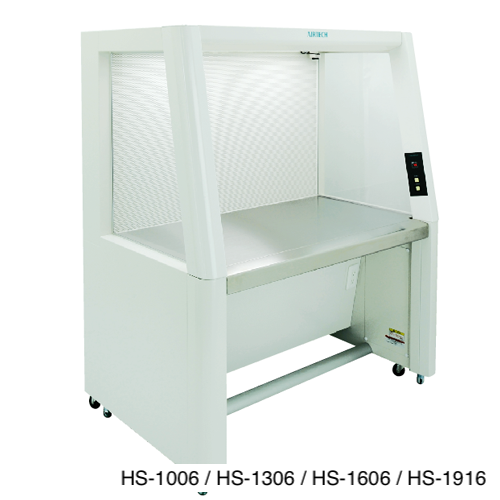

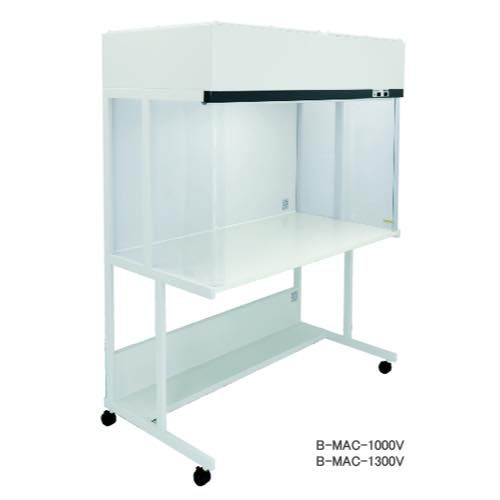

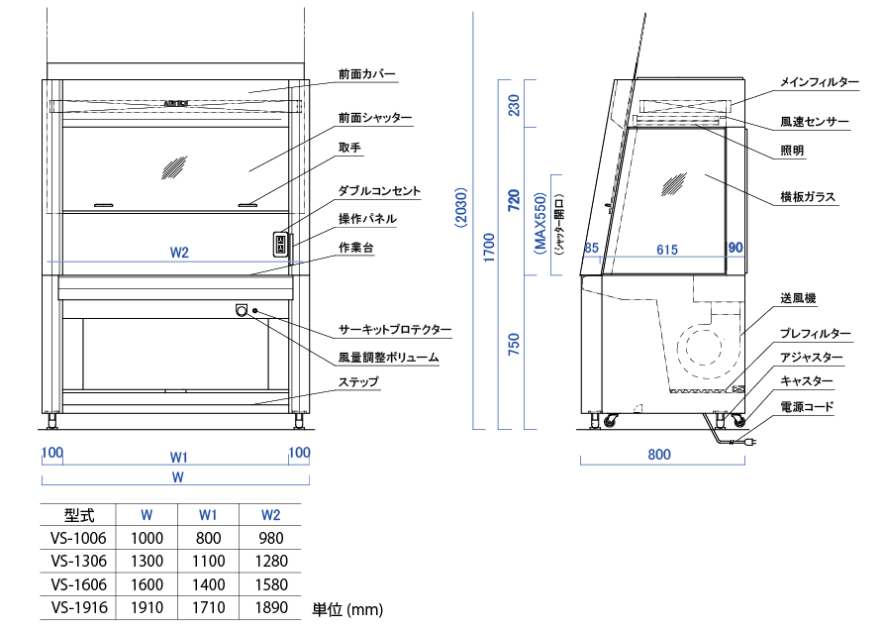

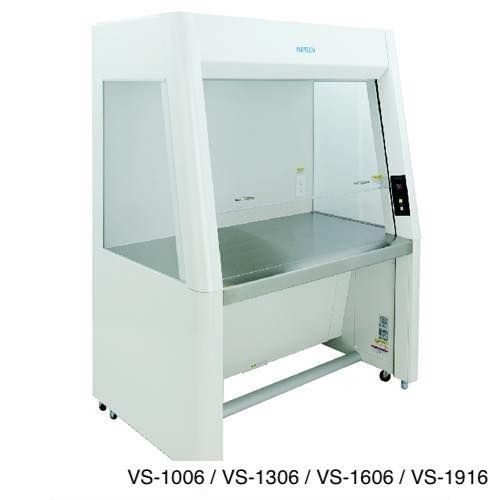

VS-1006 / VS-1306 / VS-1606 / VS-1916, FS-1005 / FS-1305 / FS-1605 / FS-1915, L-VS-1001, L-VS-1301, B-MAC-1000V, B-MAC-1300V, HS-1006, HS-1306, HS-1606, HS1916, KVM-757
